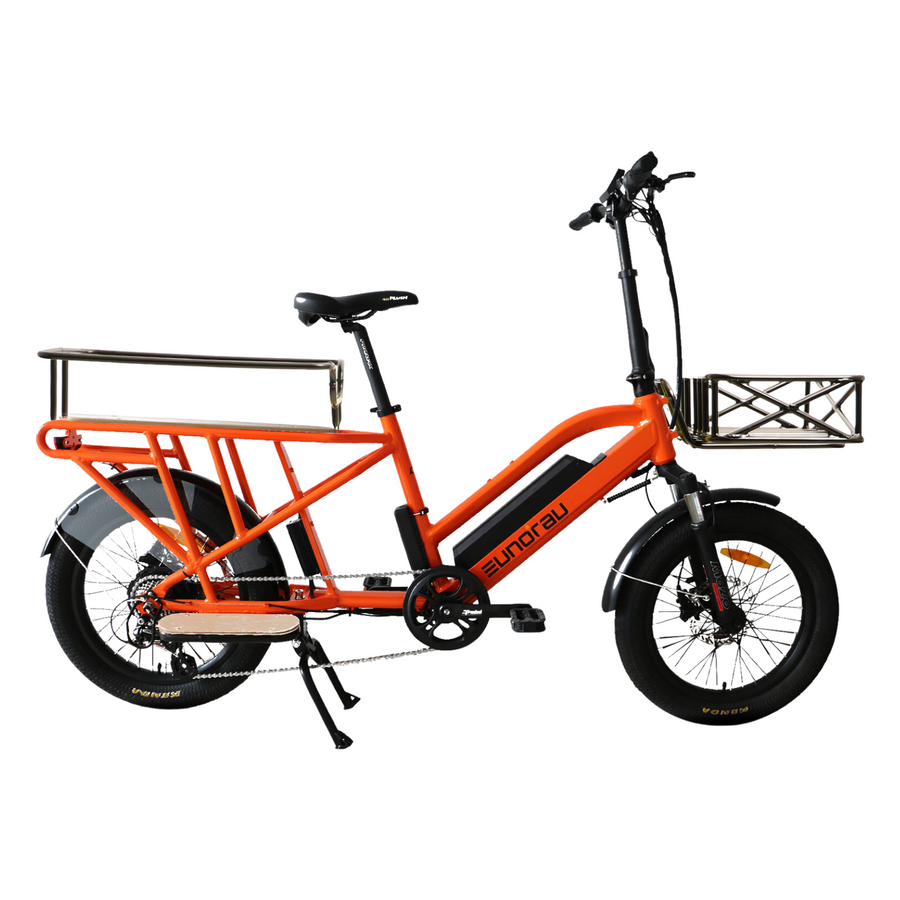

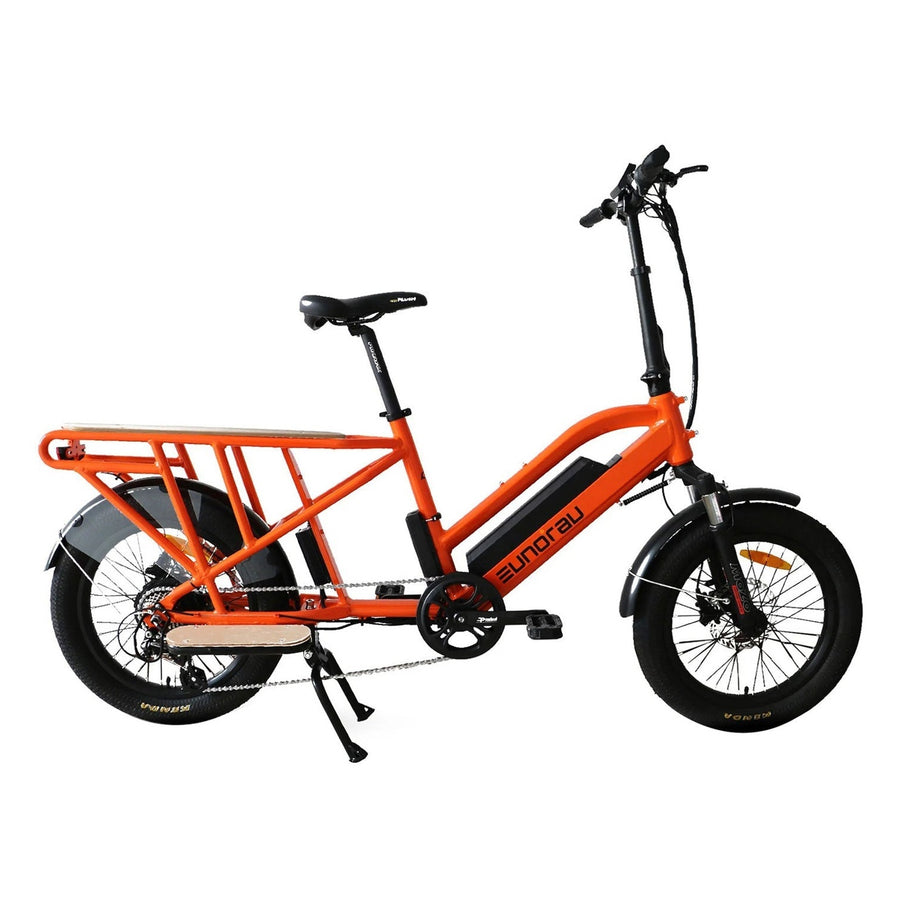

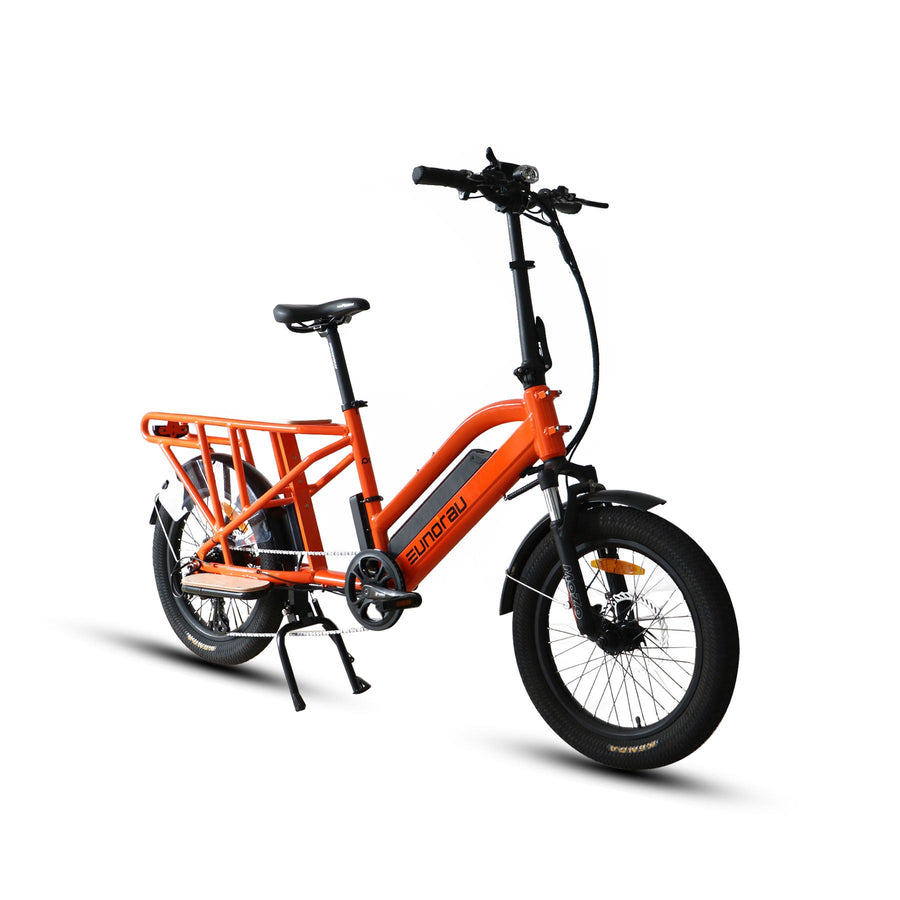

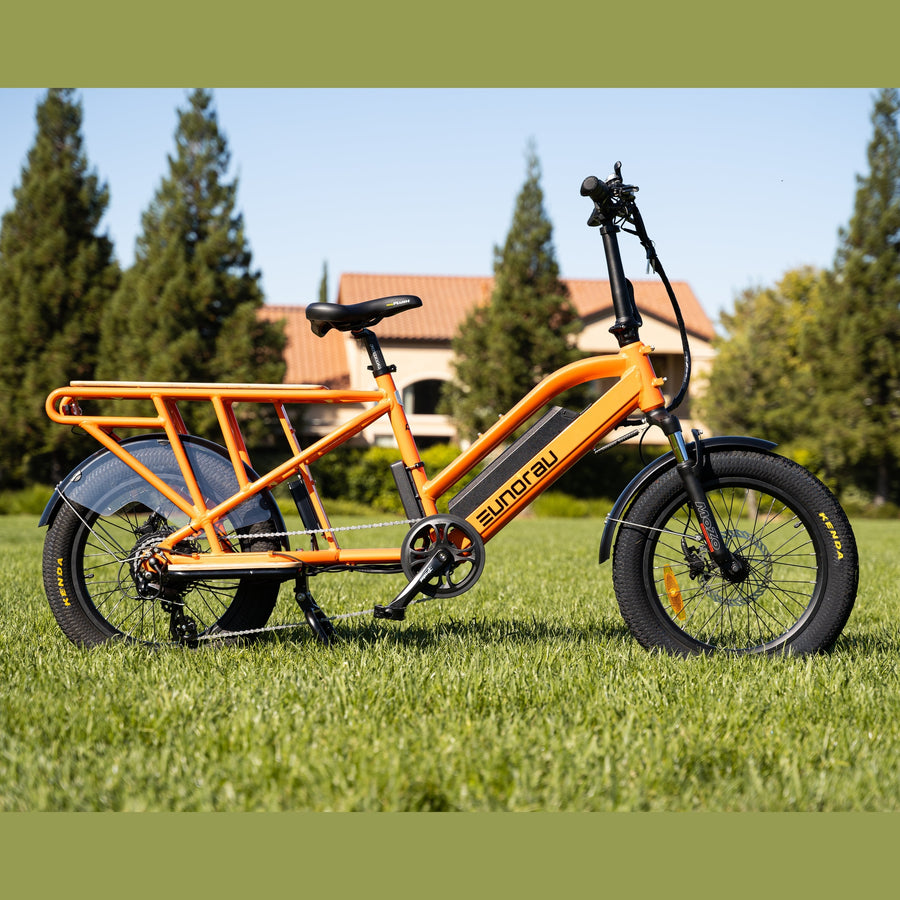

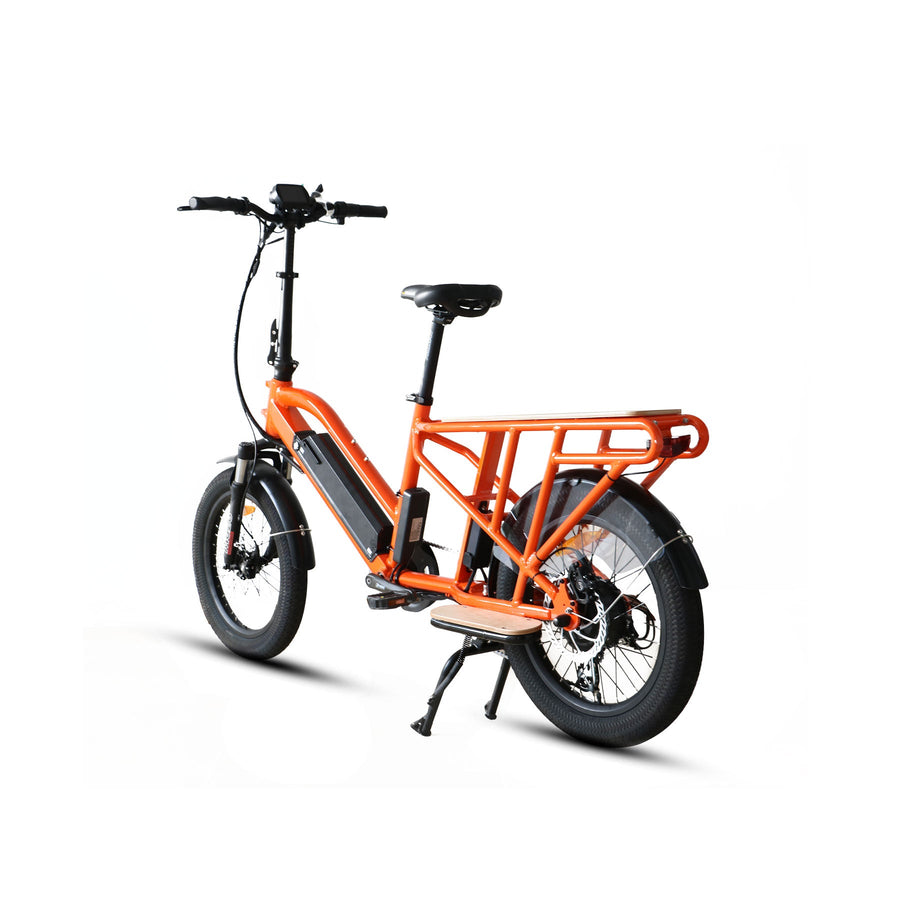

Eunorau G30-CARGO 500W Electric Cargo Bike, Max Speed 20 MPH
SKU G30-CARGO-719
by Eunorau
In stock, ready to ship
Secure checkout
Product Description

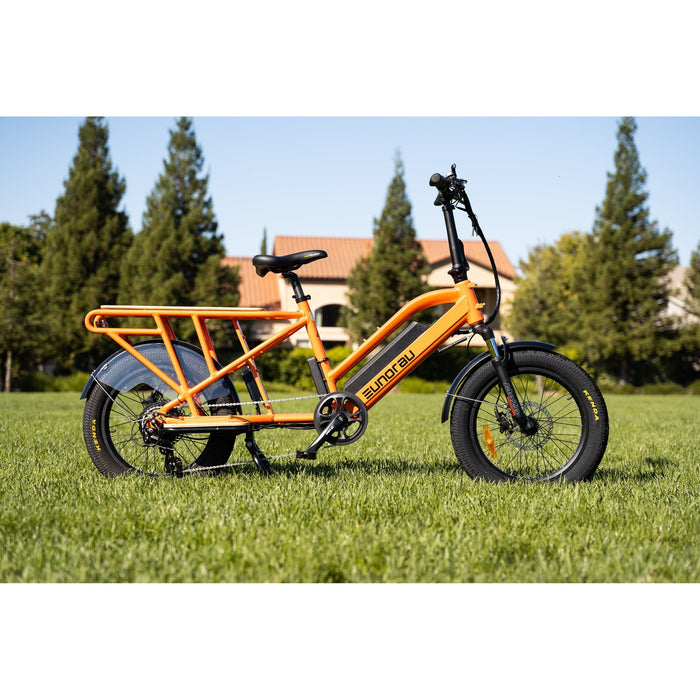

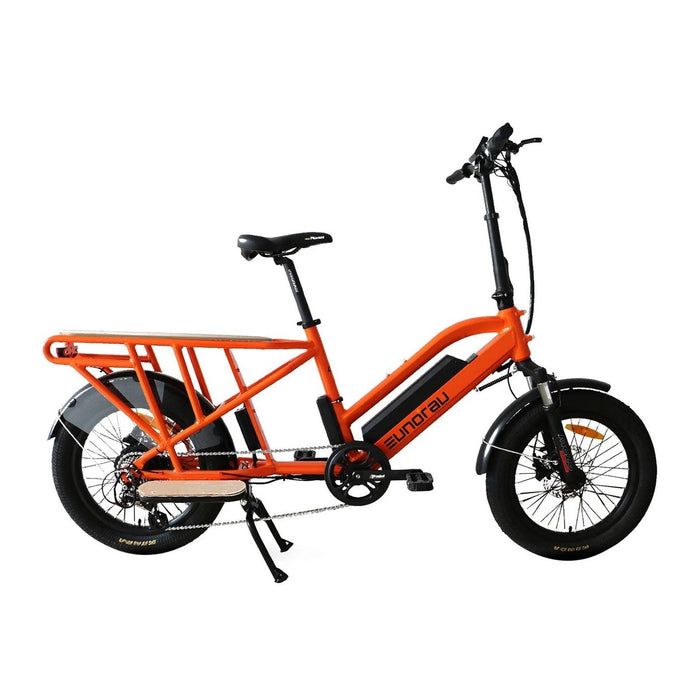

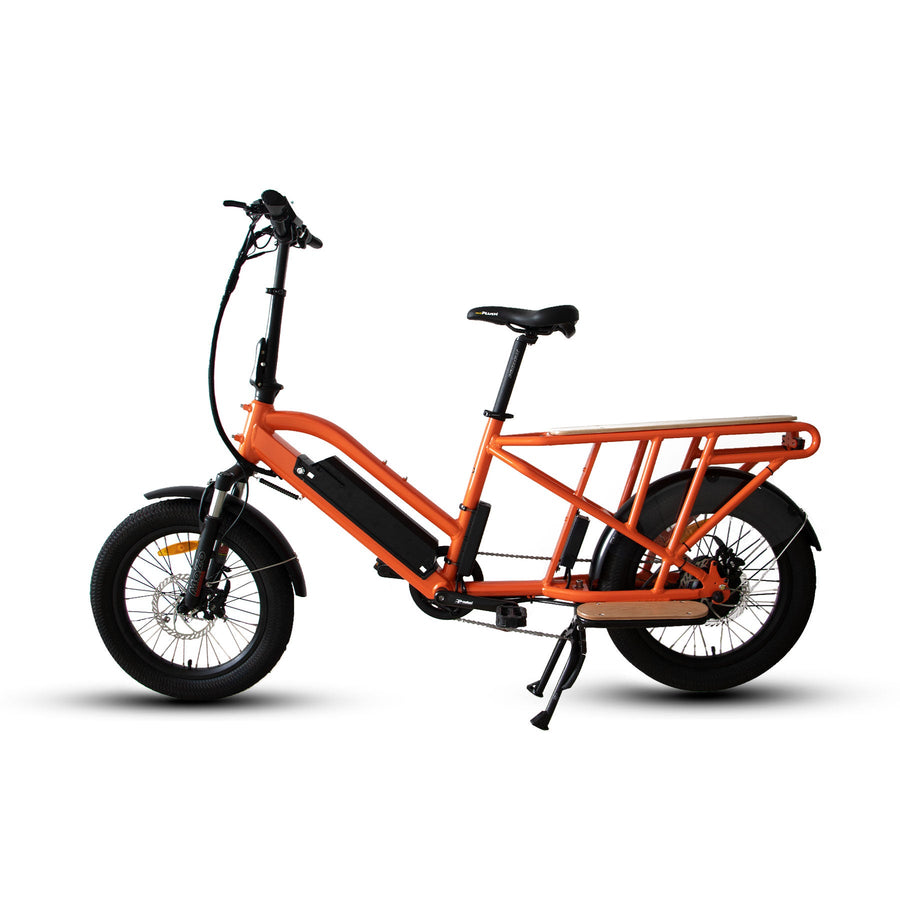

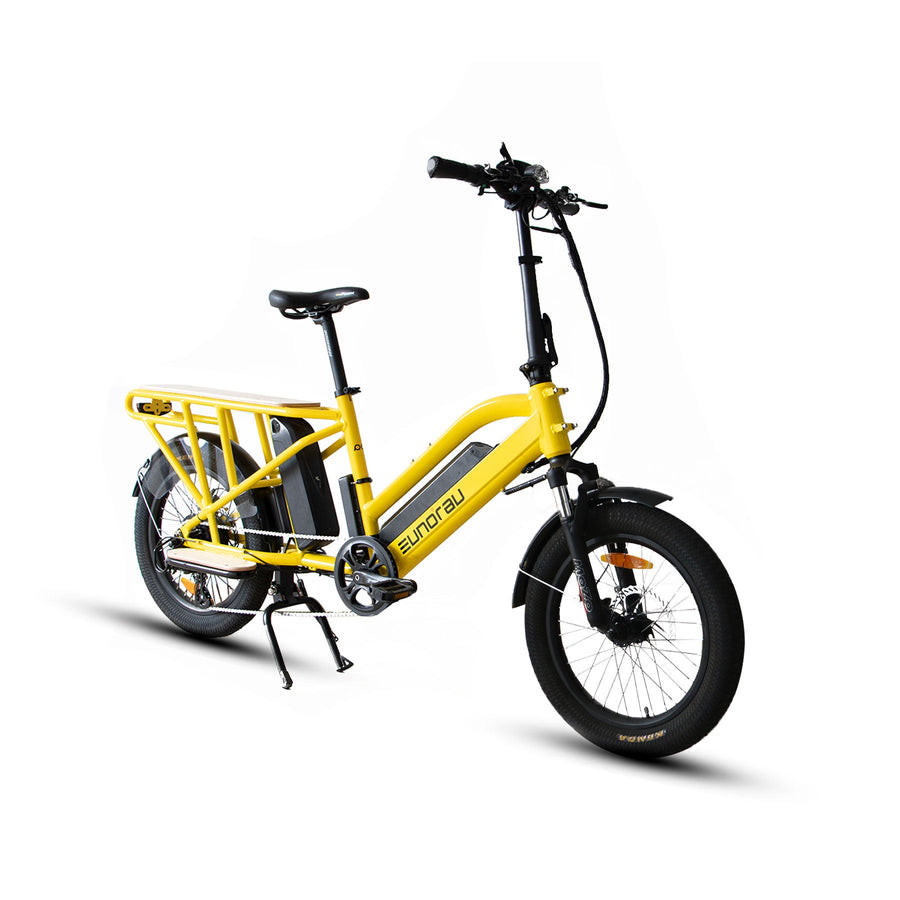

The Eunorau G30-CARGO is a long-tail cargo e-bike built around a 48V 500W geared rear hub motor delivering up to 65 Nm of torque and a top assisted speed of 20 MPH. The aluminum alloy 6061 frame supports a total payload capacity of 440 lbs, making it well suited for carrying passengers, groceries, and cargo across urban terrain. The bike is available with a 48V 14Ah or 20Ah lithium-ion battery, with support for an optional second 15Ah or 17Ah battery that extends total range up to 65 miles. A suspension fork, half-twist throttle, Shimano 7-speed drivetrain, and 180mm hydraulic disc brakes complete the build. The G30-CARGO is UL2849 and EN15194 certified and supports riders between 5'1" and 6'2".

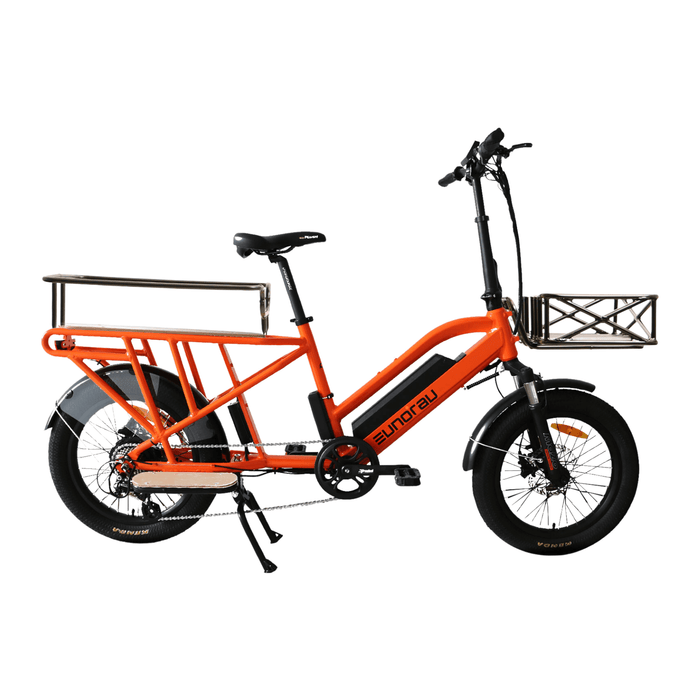

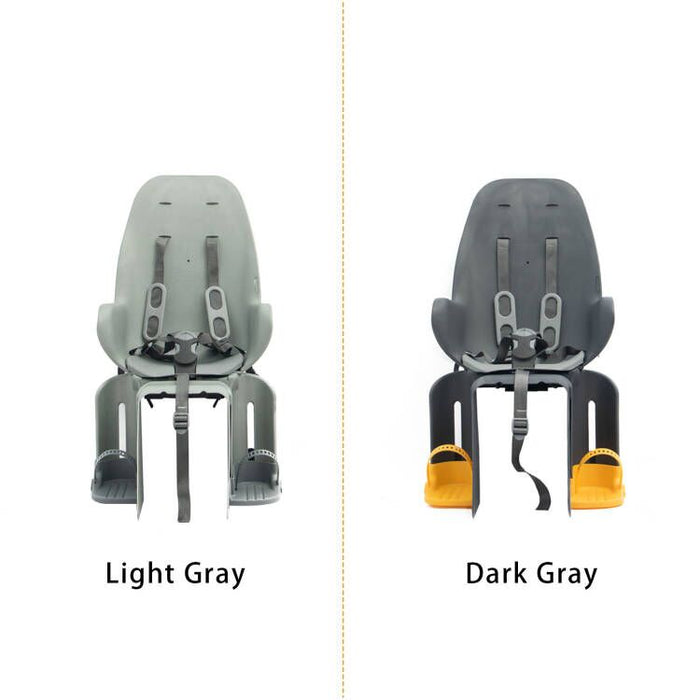

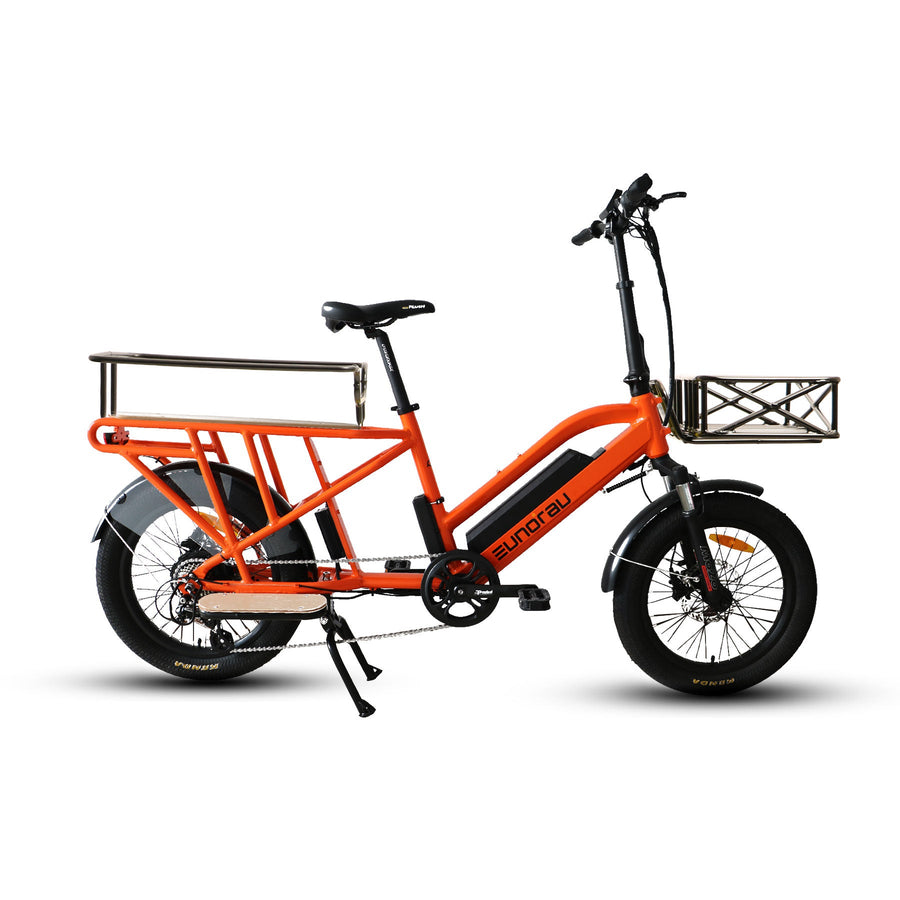

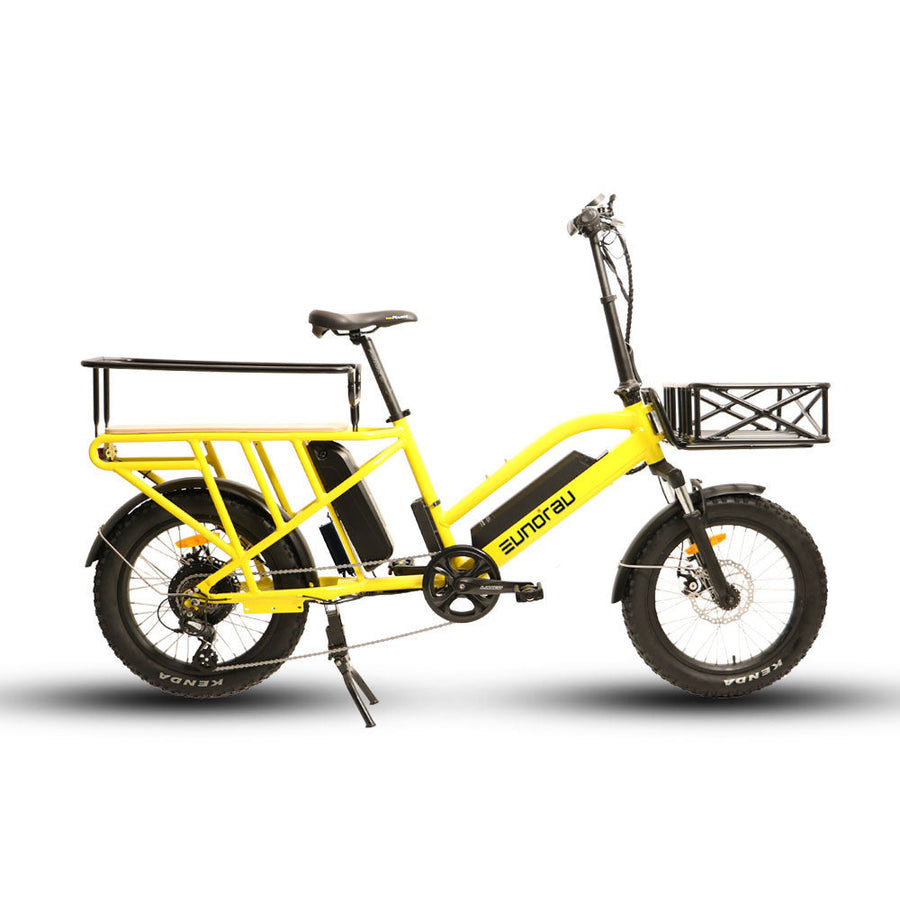

Note: Baby seats and baskets are not included and are available as optional add-ons.
Features
- 500W Geared Rear Hub Motor: Delivers a continuous 500 watts of power with up to 65 Nm of torque for cargo-loaded riding
- 440 lb Payload Capacity: Long-tail frame supports heavy loads including passengers, groceries, and delivery cargo

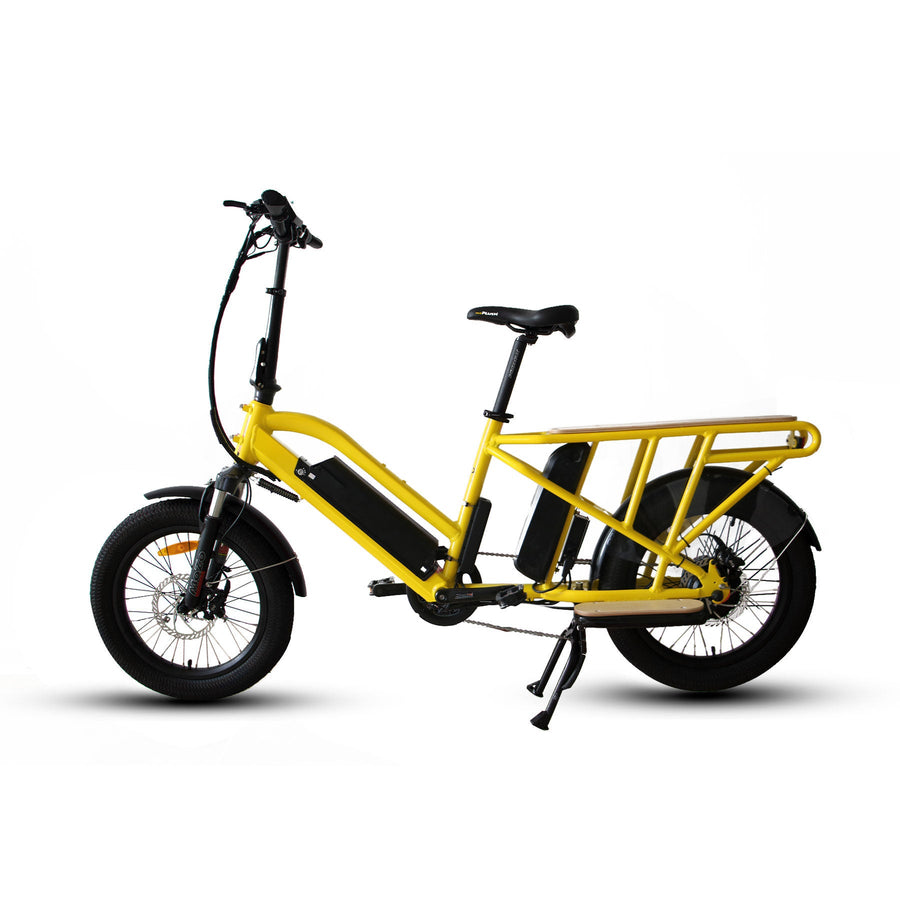

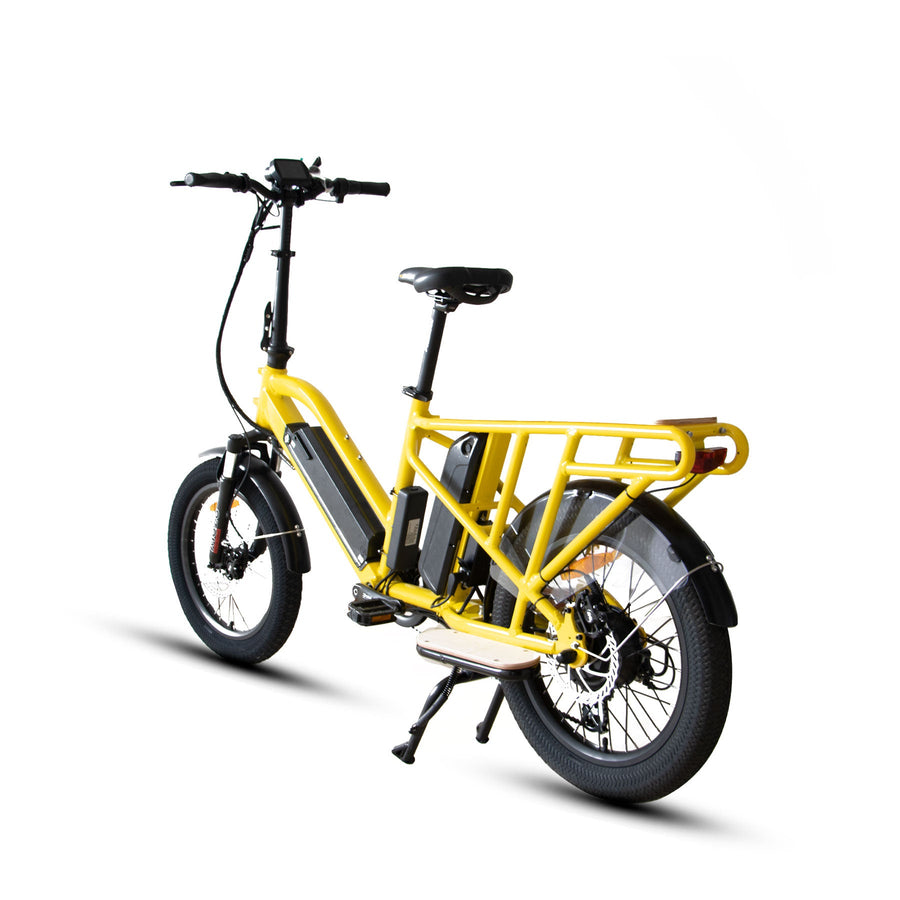

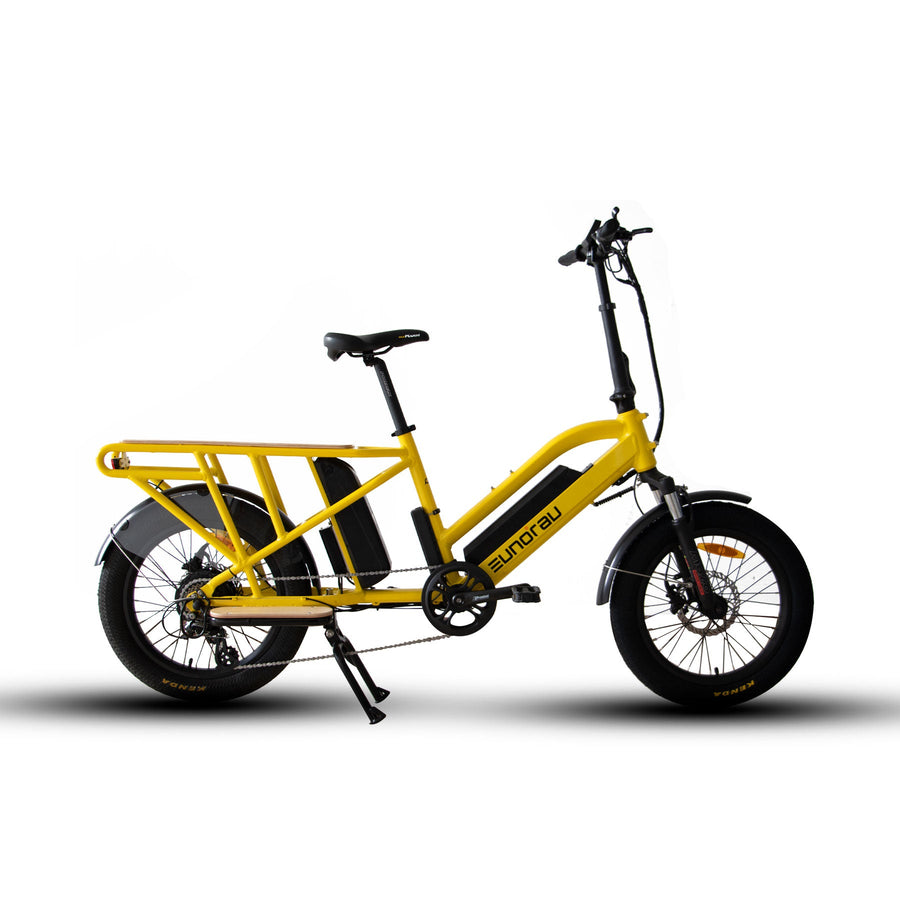

- Dual Battery Options: Available in 14Ah or 20Ah, with support for an optional second 15Ah or 17Ah battery for up to 65 miles of range
- Suspension Fork: Absorbs bumps and vibrations for a more comfortable ride on rough urban terrain
- Shimano 7-Speed Drivetrain: Altus derailleur with 7-speed cassette and SIS index thumb shifter for smooth gear transitions
- Chain Guide: Double-sided plastic chain guide protects chainring teeth and keeps the chain securely in place
- 180mm Hydraulic Disc Brakes: Powerful and reliable stopping with motor cutoff switch
- Half-Twist Throttle: Provides direct power control for easy acceleration
- CDC6 LCD Display: Shows battery level, speed, mileage, and pedal assist level
- Battery-Powered Front Light: Bright LED headlight powered by the main battery for night riding
- UL Certified: UL2849 and EN15194 certified for safety compliance
Specifications
| Motor | 48V 500W Geared Rear Hub Motor, Max 65 Nm Torque |
| Battery | 48V 14Ah or 20Ah Lithium-Ion (Optional Second Battery 15Ah or 17Ah) |
| Range | 35–65 miles (with dual battery) |
| Maximum Speed | 20 MPH |
| Controller | 48V 20A |
| Display | CDC6 LCD Display |
| Charger | US Standard 2.0A Smart Charger |
| Charging Time | 4–6 hours |
| Frame | Aluminum Alloy 6061 |
| Recommended Rider Height | 5'1" – 6'2" |
| Total Payload Capacity | 440 lbs |
| Box Dimensions | 144 x 25 x 71 cm |
| Certification | UL2849 / EN15194 |
Components
| Tires | Kenda 20" x 3.0" |
| Rims | 20" Black Alloy |
| Spokes | Stainless Steel |
| Fork | Suspension Fork |
| Brakes | 180mm Hydraulic Disc Brakes with Motor Cutoff |
| Brake Levers | Hydraulic Disc Brake Levers with Motor Cutoff Switch |
| Shifter | Shimano Derailleur 7-Speed |
| Throttle | Half-Twist Throttle |
| Crank | 44T Chain-Wheel Crank |
| Handlebar | Adjustable Stem, Matte Black |
| Saddle | Velo Saddle, Height to Ground 32.3"–39.4" |
| Pedals | High Quality Nylon Pedals |
| Front Light | LED Light |
| Rear Light | Included |
| Tools | Included |
Warranty
The Eunorau G30-CARGO comes with a 2-year limited warranty.
